1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | TTIFIBER |
| Sertifikasi: | CE/ROHS/ISO9001 |
| Nomor model: | ferrule serat |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | dapat dinegosiasikan |
| Kemasan rincian: | Tas PE |
| Waktu pengiriman: | 60 hari kerja |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | 20000pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | ferrule serat | Od: | 1,25 / 2,5mm |
|---|---|---|---|
| Bahan: | Keramik | Tipe konektor: | SC /LC /ST /FC |
| Tipe inti: | Singlemode / multimode | Kemasan: | Tas PE |
| Menyoroti: | 1.25mm ceramic ferrule for LC connector,2.5mm SM MM fiber optic ferrule,ceramic ferrule with flange for SC connector |
||
Deskripsi Produk
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
Specification
- Outer diameter: (1.2499±0.0005)mm
- Inner diameter: (0.125+0.001/-0)mm
- Concentricity: 1.0μm
- Insertion loss: ≤0.2dB
- Return loss: ≥60dB
- Length: (6.50±0.05)mm
Brief Introduction
Ferrule is generally treated as the core part of the connector. Zirconia ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present.
Material
- Ferrule: Zirconia Ceramic
- Flange: Ni-Plated Cu
Features
- Good compatibility
- Accurate mechanical dimensions
- Good reliability and stability
- Compliant with RoHS, Bellcore, IEC
Application
- Telecommunication
- CATV
- LAN (including FTTx)
- Data network
Detailed Specification
| Parameter | Single Mode | Multi Mode |
|---|---|---|
| Outside Diameter | Ø2.4990 | |
| OD Tolerance | ±0.0005 | ±0.001 |
| Inner Diameter | Ø0.125 | |
| ID Tolerance | +0.001/0 | +0.004/0 |
| Ferrule Length | 10.5±0.05 | 10.5+0.05/-0.1 |
| Concentricity | ≤0.001 | ≤0.004 |
| End Curve Radius | 15+10/-5 | |

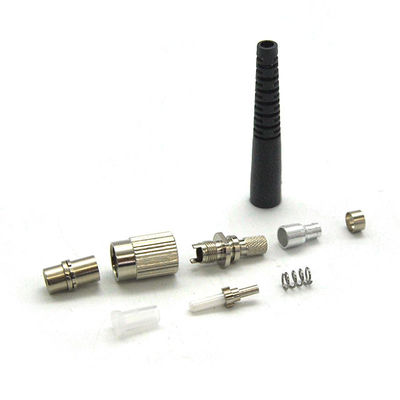

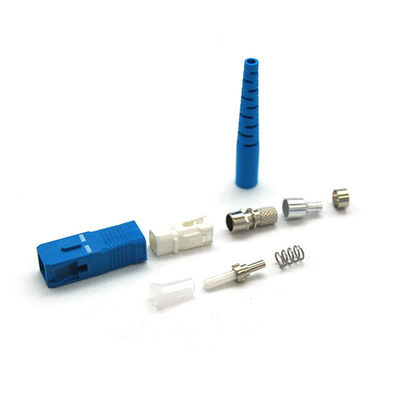

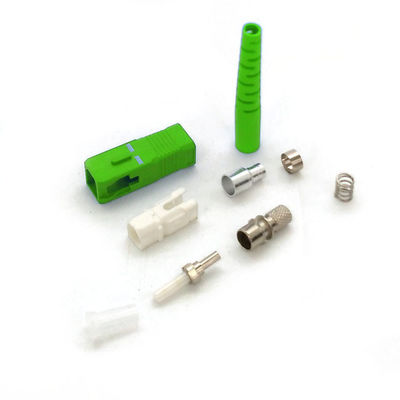

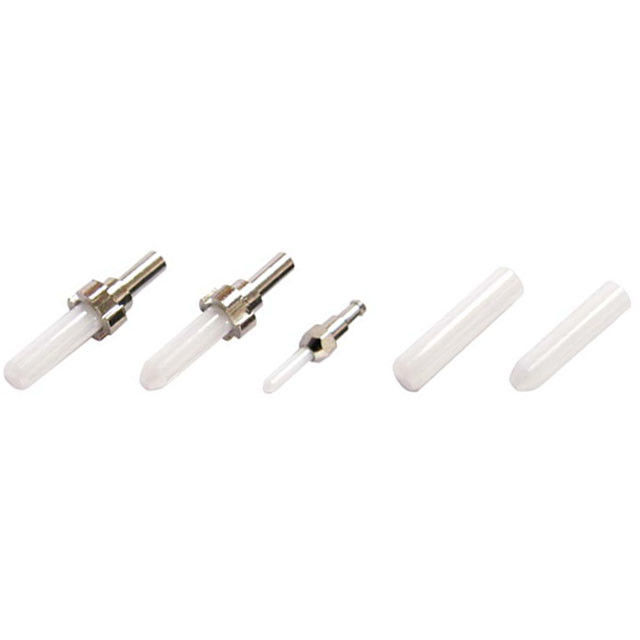

Product Pictures
