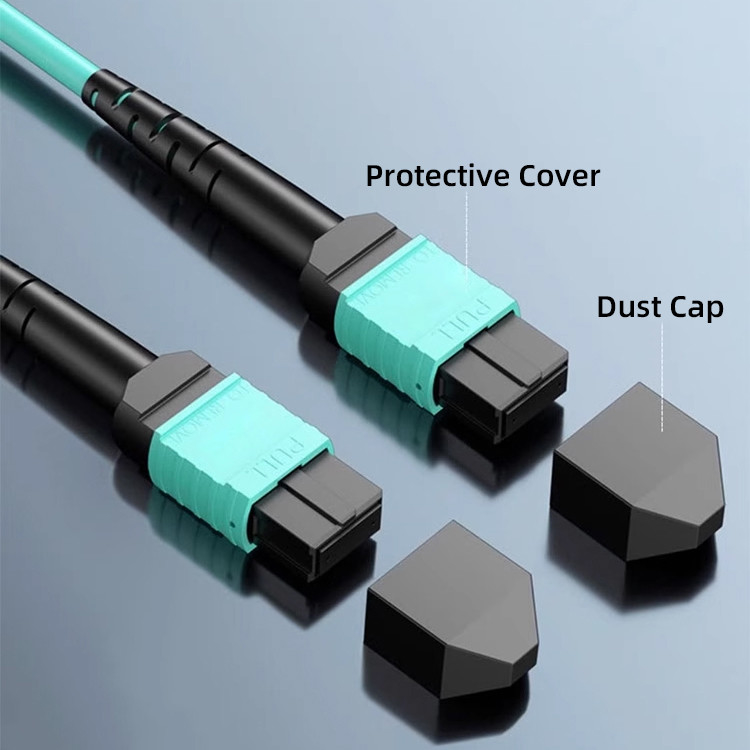

MPO OM3 OM4 PVC LSZH kabel fiber optic patch
Detail produk:
| Place of Origin: | Guangdong |
| Nama merek: | OEM |
| Sertifikasi: | ROHS |
| Model Number: | MPO |
Syarat-syarat pembayaran & pengiriman:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Harga: | dapat dinegosiasikan |
| Kemasan rincian: | 1 BUAH/PE Tas |
| Delivery Time: | in 2-4 days |
| Payment Terms: | , T/T, D/A, L/C |
| Supply Ability: | 7000pcs / Day |
|
Informasi Detail |
|||
| Model: | Kabel Patch Serat MPO | Dipoli: | UPC |
|---|---|---|---|
| Kerugian penyisipan: | <0,35dB | Jaket Kabel: | PVC LSZH LSOH PE HDPE |
| Jenis kabel: | Kabel Bulat | Operating Temperature: | 40~85°C |
| Menyoroti: | kabel patch serat optik MPO |
||
Deskripsi Produk
MPO OM3 OM4 PVC LSZH kabel fiber optic patch
Parameter teknis
|
Parameter
|
unit
|
Nilai numerik
|
||||
|
Jenis konektor
|
/
|
MPO-MPO,MTP-MTP
|
||||
|
Panjang gelombang pusat
|
nm
|
1550
|
1310
|
1300
|
850
|
|
|
Kerugian penempatan maksimum (23°C)
|
dB |
Nilai tipikal 0.3
maksimal 0.75 |
Nilai tipikal 0.3
maksimal 0.75 |
Nilai tipikal 0.3
maksimal 0.75 |
Nilai tipikal 0.3
maksimal 0.75 |
|
|
Kerugian pengembalian minimum (23°C) |
PC
|
dB
|
≥45
|
≥ 20
|
||
|
UPC
|
dB
|
≥ 50
|
≥ 25
|
|||
|
APC
|
dB
|
≥ 60
|
≥45
|
|||
|
Kemungkinan diulang
|
dB
|
≤ 0.1
|
||||
|
Kemampuan bergantian
|
dB
|
≤ 0.2
|
||||
|
Toleransi sudut
|
Dega
|
± 0.3
|
||||
|
Nuber plug
|
kali
|
≥ 500
|
||||
|
Suhu operasi
|
°C
|
-20 ~ +70
|
||||
|
Suhu penyimpanan
|
°C
|
-40 ~ +85
|
||||
|
Panjang gelombang pusat
|
1550nm, 1310nm, 1300nm, 850nm
|
|
Masukkan jenis konektor
Jenis konektor output |
MPO/UPC (M), MPO/UPC (F), MTP (M), MTP (F)
MPO/APC ((M),MPO/APC ((F),MTP/APC ((M),MTP/APC ((F) |
|
MPO/UPC (M), MPO/UPC (F), MTP (M), MTP (F)
|
|
|
MPO/APC ((M),MPO/APC ((F),MTP/APC ((M),MTP/APC ((F)
|
|
|
Jumlah serat optik
|
8=8 Serat, 12=12 Serat, 16=16 Serat, 24=24 Serat, atau ditentukan
|
|
Jenis serat optik
|
G652D,G657A1,G657A2,OS2,OM1,OM2,OM3,OM4,OM5,atau ditentukan
|
|
Diameter serat
|
Φ9/125um,Φ50/125um,Φ62.5/125m
|
|
Diameter luar kabel
|
Φ3.0mm,Φ3.5mm,Φ4.5mm,atau ditentukan
|
|
Urutan lini produk
Buah jagung |
A polaritas, B polaritas, C polaritas
MPO/UPC (M), MPO/UPC (F), MTP (M), MTP (F)
|
|
MPO/APC ((M),MPO/APC ((F),MTP/APC ((M),MTP/APC ((F)
|
